State Water Heaters 100113762

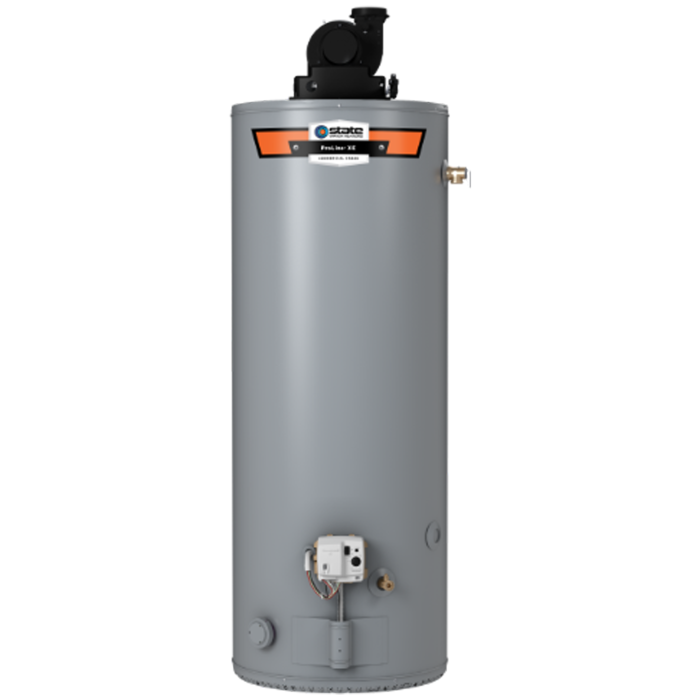

The ProLine® XE Power Vent gas water heater is engineered to maximize efficiency, while offering greater flexibility in installation options.

Featuring a 50-gallon (nominal) tank and a 40,000 BTU propane burner, the GS6-50-HBVIS Power Vent delivers a first hour rating of 79 gallons and a recovery rate of 44.72 gallons per hour. This water heater 0.72 Uniform Energy Factor. It carries a 6-year limited warranty, and meets Low NOx emission requirements.

• VERSATILE POWER VENT DESIGN
  • All models feature an exclusive 3-position rotatable blower outlet which adds flexibility
  • Combined horizontal and vertical vent runs up to 180 equivalent feet with 4” diameter venting (ABS, PVC, CPVC and polypropylene)
  • All models are equipped with a protected sensor that detects the
    presence of flammable vapors and automatically disables the burner to prevent ignition
  • Air intake snorkel elevates the inlet location of combustion air to prevent flammable vapors from entering the sealed combustion chamber
  • Reduced NOx emissions comply with air quality management district regulations
  • Built-in heat traps on the water inlet and outlet reduce the amount of heat lost through piping
  • 2-inch thick, “Environmentally-Friendly” foam insulation reduces the amount of heat loss and contributes to overall energy efficiency
• SELF-CLEANING DIP TUBE
  • Reduces lime and sediment buildup and maximizes hot water output. Made from long-lasting PEX cross-linked polymer.
• HOT-SURFACE IGNITOR
  • More robust and reliable than standing pilot, and reduces energy consumption
• BLUE DIAMOND® GLASS COATING
  • Provides superior corrosion resistance compared to industry standard glass lining
• USER-FRIENDLY
  • State-of-the-art electronic gas control provides more precise temperature control
  • LED control light displays operation status and diagnostics information
• ENHANCED-FLOW BRASS DRAIN VALVE
  • Our residential water heaters have a solid brass, tamper resistant,
    enhanced-flow, ball type, drain valve.
  • Uses a standard female hose fitting that allows for fast and easy draining during maintenance.
  • Designed for easy operation, this valve includes an integral screwdriver slot that features a ¼ turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off.
• AVAILABLE IN NATURAL GAS AND PROPANE DESIGN-CERTIFIED BY CSA INTERNATIONAL
  • Certified at 150 psi working pressure
  • Certified to ANSI Z21.10.1 - CSA 4.1 or ANSI Z21.10.3 - CSA 4.3 standards governing storage tank-type water heaters.
• 6-YEAR LIMITED TANK AND PARTS WARRANTY
  • For complete information, consult written warranty or visit statewaterheaters.com
