RectorSeal 83939

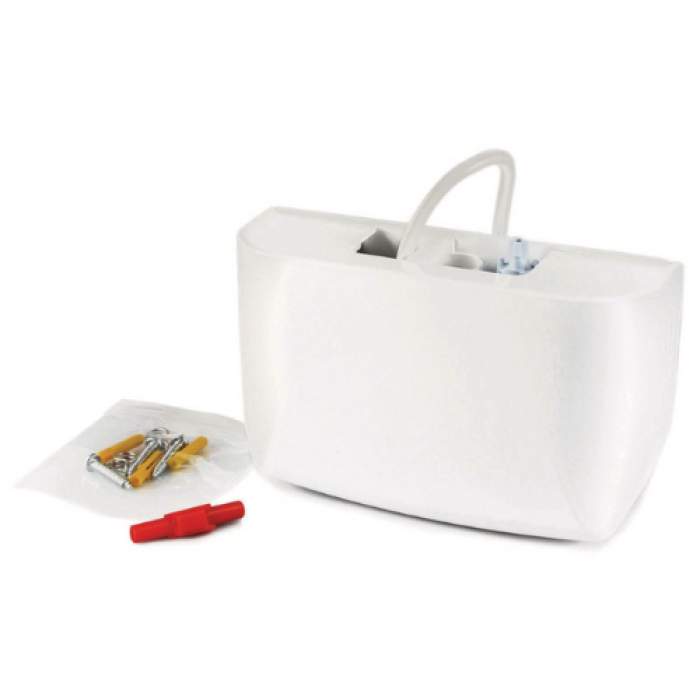

RectorSeal® Aspen® 83939 Condensate Pump Kit, 100 - 250 VAC, Up to 54,000 BTU/hr; 2.9 GPH @ zero head; 1.2 GPH @ 33ft head

  • Manufacturers: RectorSeal
  • Brand Name: RectorSeal
  • Item #: 5741
  • Rebate Amount:
  • MPN: 83939
  • Alt Part #: ASPMWUNI
  • Qty. Interval: 1
  • Availability: Login for Availability

RectorSeal® Aspen® Condensate Pump Kit, 100 - 250 VAC, Up to 54,000 BTU/hr; 2.9 GPH @ zero head; 1.2 GPH @ 33ft head,104 F, 7-1/8" L x 4-1/2" H x 2" W

Model      :      ASP-MW-UNI
Voltage Rating      :      100–250 VAC
Amperage Rating      :      .17
Power Rating      :      16 W
Maximum Feet of Head      :      33 FT
Sound Level      :      21 dB
Temperature Rating      :      104 F
Color      :      White
  • Surface mounts below evaporator, at either end
  • Crisp white color and slim profile complement any evaporator
  • Resilient mounting minimizes vibration & noise
  • Accepts standard 5/8" drain hose from any mini-split
  • Fully potted electronics
  • No need to disturb evaporator to clean filter, reservoir clips out from front for easy removal and replacement
  • Includes anti-siphon device
  • 21 dB sound level
  • 3 A NO/NC dry contacts rated at 5 A inductive at 230 VAC
  • Class II appliance
  • pdfInstruction/Installation Manual https://www.sgtorrice.com//ASSETS/DOCUMENTS/ITEMS/EN/RectorSeal_83939_Installation_Instructions.pdf
  • pdfSubmittal https://www.sgtorrice.com//ASSETS/DOCUMENTS/ITEMS/EN/RectorSeal13771_83078668_83939.pdf
